High Precision Good Rigidity XA7150 Bed-Type milling machine

Full Automatic Universal Milling Machine

High Precision Good Rigidity XA7150 Bed-Type milling machine

XA7150 is a universal heavy-duty bed-type vertical milling machine designed for high-efficiency metal cutting. Adopting rigid one-piece bed structure and ISO50 high-torque spindle, it delivers stable heavy cutting performance and wide processing compatibility, widely recognized as standard workshop equipment for mold manufacturing, machinery parts, automotive and hardware processing.

Different from knee-type mills, its fixed bed layout eliminates deformation under heavy load, featuring larger worktable, longer travel range and stronger bearing capacity, ideal for batch processing of medium & large metal workpieces.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
5000Kg

Inquire Now

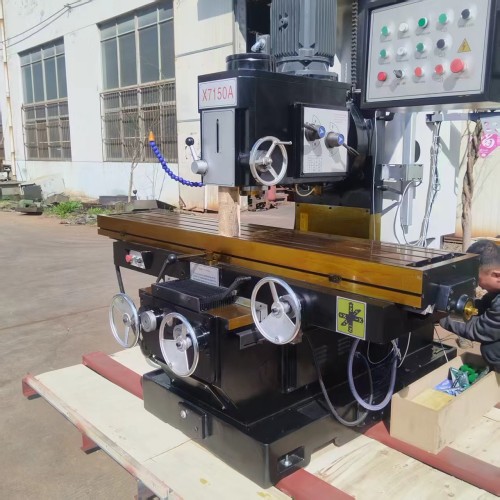

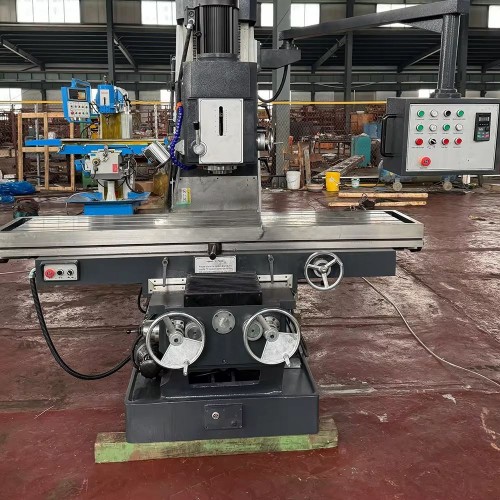

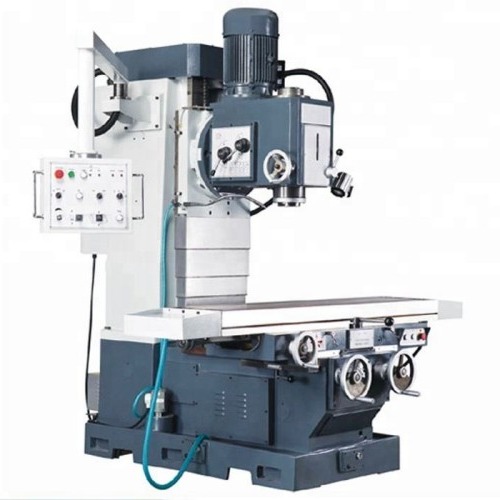

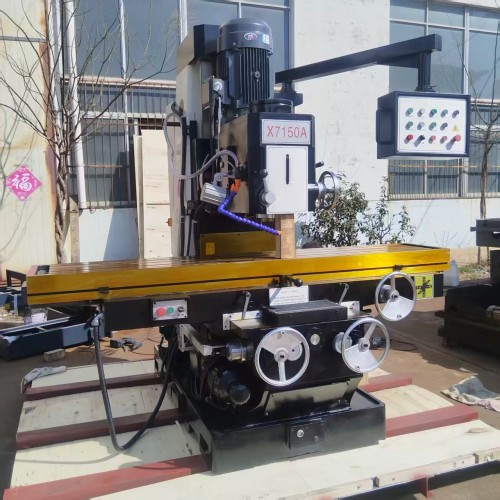

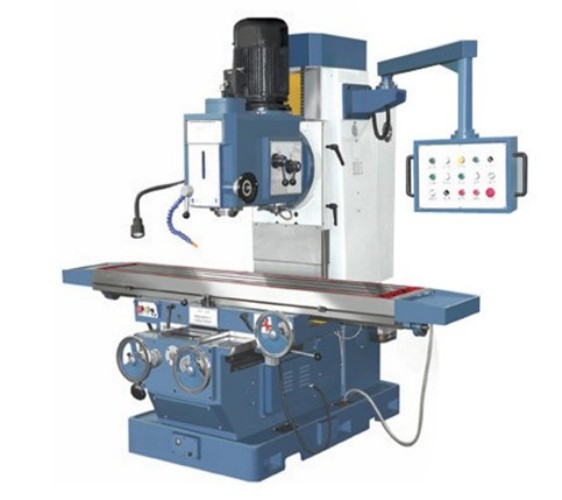

XA7150 Bed-Type milling machine

XA7150 heavy-duty bed vertical milling machine is built with rigid Meehanite cast iron body.

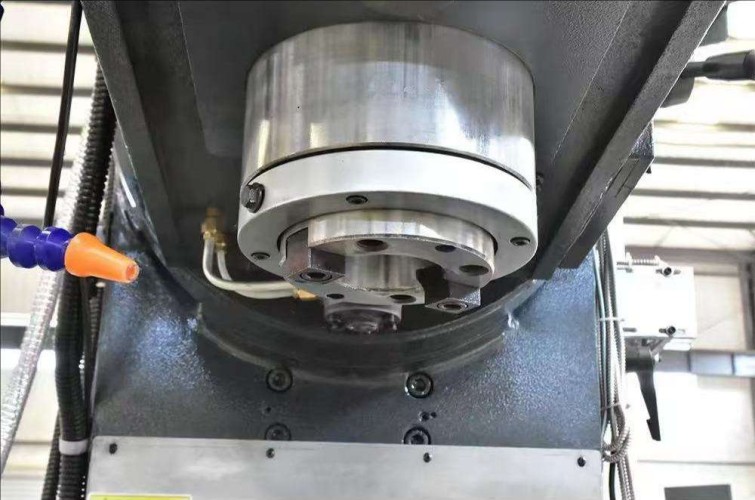

Equipped with ISO50 gear spindle (12 speeds 66–1440rpm) and ±30° swivel head, fitted with 2000×400mm heavy load worktable.

It realizes plane milling, slotting, boring and mold processing efficiently.

Optional 3-axis DRO improves machining accuracy.

Widely applied in mold, automobile and general machinery factories, perfect for heavy rough cutting and precision finishing.

specification


Specfications	XA7150
Table size	2000×400mm
Table travel(X/Y)	1500×500mm
Vertical travel of headstock	100-650mm
Number/Midth/Distance of T-slot	3-18-100 mm
Max.load of table	2000kg
X-Y axis feed speed	20-2000mm/nin
X-Y axis rapid feed speed	3500 mm/min
Spindle speed range	66-1440rpm
Spindle speed step	12级(steps)
Distance from spindle axis to column guideway	600mm
Spindle motor power	75kW
Overall dimension	3000×2285×2340 mm
Machine weight	5000kg

Product Advantages

High-rigidity Meehanite cast iron body

The base, column, spindle head and worktable are all made of high-strength Meehanite cast iron and treated with stress relief annealing, which can effectively absorb cutting vibration and maintain long-term machining precision. Y/Z axis wide rectangular guide rails greatly enhance overall rigidity for large stock removal.

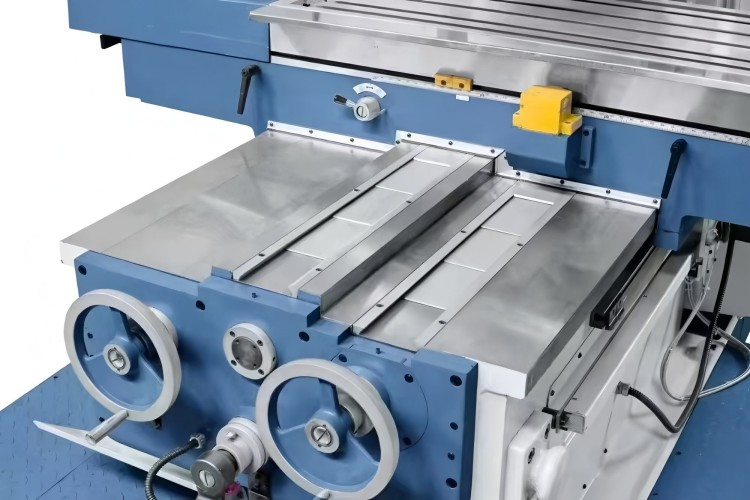

Quenched precision grinding guide rails

All sliding surfaces of worktable guide rails adopt high-frequency quenching and precision grinding technology, featuring high hardness, strong wear resistance and low friction, extending service life and guaranteeing smooth feeding.
Large heavy-load worktable

Table size: 2000×400mm, maximum bearing load reaches 2000kg. X-axis travel:1500mm, Y-axis travel:500mm, Z-axis spindle head travel:100–650mm. Equipped with 3 T-slots (18mm width, 100mm spacing), convenient for installing vise and custom fixtures.
Stable power configuration

7.5kW high-power main spindle motor supports continuous heavy cutting. Matched with 2.8kW feed motor and 90W cooling pump, power output is stable with low failure rate.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service. Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

vertical milling machine

factory show

Professional Production Base, Strength in Precision Manufacturing.

universal milling machine Conventional Machinery

Milling Machine ISO50 Vertical Milling Machine

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

horizontal and vertical milling machine

packing

Q: What are the core advantages of XA7150 bed-type milling machine?

A: Adopting rigid bed structure, stable overall performance, strong cutting capacity and long service life, ideal for heavy-duty workshop processing.

Q: What kind of processing work is the bed-type milling machine suitable for?

A: It is widely used for plane milling, groove processing, drilling, boring and keyway cutting in machinery repair and parts manufacturing.

Q: How about the rigidity and stability of XA7150?

A: The integral cast iron bed and reinforced column design effectively reduce vibration, ensuring smooth cutting and good workpiece surface quality.

Q: Is this bed-type milling machine easy to operate and maintain?

A: The mechanical structure is simple and reliable, with convenient speed adjustment and lubrication system, low daily maintenance difficulty and cost.

Q: What metal materials can XA7150 process?

A: It can process cast iron, carbon steel, aluminum, copper and alloy materials, with strong versatility for various conventional cutting tasks.

Q: What is the difference between bed-type milling machine and ordinary bench milling machine?

A: Bed-type structure provides larger load capacity, higher overall rigidity and better stability, suitable for long-time heavy cutting work.
