Heavy Duty Multi-functional Q1313 Big Spindle Bore Pipe Thread Lathe Machine

The Q1313 pipe thread lathe is a heavy-duty horizontal lathe specially engineered for pipe threading and general metal turning tasks, featured with an extra-large spindle bore to accommodate large-diameter tubular workpieces. Built with high-rigidity cast iron bed and robust mechanical structure, this machine delivers outstanding stability, load-bearing capacity and long-term operational accuracy for heavy machining scenarios.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Qingdao
Lead Time :
30
Weight :
4500Kg

Inquire Now

Q1313-1Cx1500mm Big Spindle Bore Pipe Thread Lathe Machine

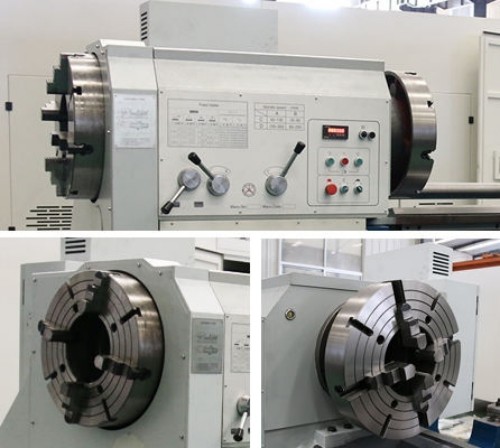

It comes with double chucks and taper guide bar, capable of machining metric, imperial and taper threads accurately.

This multi-functional lathe also completes outer circle, inner hole, end face turning, as well as drilling, reaming and knurling.

Featuring reliable structure, easy operation and stable precision, it is widely used in petroleum, chemical, mining and pipeline industries for processing all kinds of pipes, drill rods and pipe connectors.

specification


ITEM		Unit	*Q1313-1C1500**
Bed capacity	Swing over bed	mm	630
	Swing over cross slide	mm	348
	Max length of work-piece	mm	1500
	Max. processing length at once	mm	1250

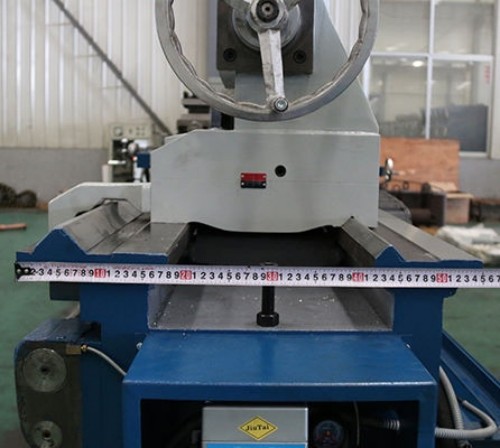

	Guideway width	mm	550
	Max. load capacity	T	3
Spindle	Spindle center height	mm	315

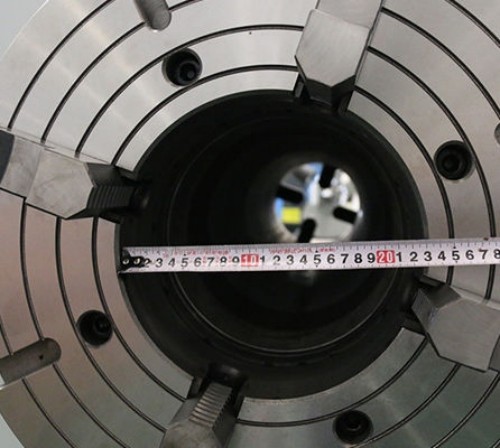

	Spindle bore	mm	135
	Pipe threading range	mm	Φ30-126
	Spindle speed step		Two-speed frequency conversion with stepless speed regulation.
	Spindle speed range	r/min	Low (L): 40–180 rpm High (H): 150–800 rpm
Motor	Power of spindle motor	KW	11
Feed	Z axis feed grade /range	mm/r	32/0.095-1.4
	X axis feed grade /range	mm/r	32/0.042-0.7
	Carriage raid traverse speed	mm/min	3740
	Cross slid raid traverse speed	mm/min	1870
	Metric thread grade/range	mm	22/1-15
	Inch thread grade/range	T.P.I	26/14-1
	Traverse of cross slide	mm	330
	Max. Traverse of turret	mm	200
Tailstock quill	Diameter	mm	100
	Travel	mm	250
	Taper		MT5
Turret	No.of tool stations		4-station tool post
Turret	Tool shank size	mm	32×32

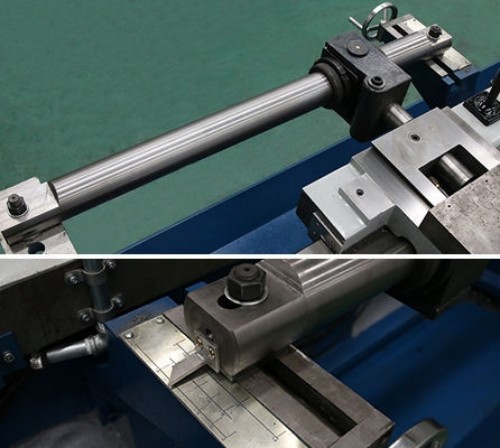

Taper bar	Active length	mm	700
Taper bar	Conical range		0-1:4
Chuck			K11-380 3-jaw chuck
Overall dimensions	L×W×H	mm	3700×1710×1380
Machine weight		T	4.5

Product Advantages

Large spindle bore design

Perfect for passing and processing large-size pipes, greatly improving workpiece adaptability.
Heavy-duty construction

Solid one-piece bed and reinforced components withstand heavy cutting, guarantee stable performance under long-time heavy load.
Versatile machining capability

Integrates pipe threading, ordinary turning and auxiliary machining functions to meet diverse production demands.
High thread precision

Professional thread transmission structure and taper device ensure accurate thread pitch and excellent surface finish.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service. Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

vertical milling machine

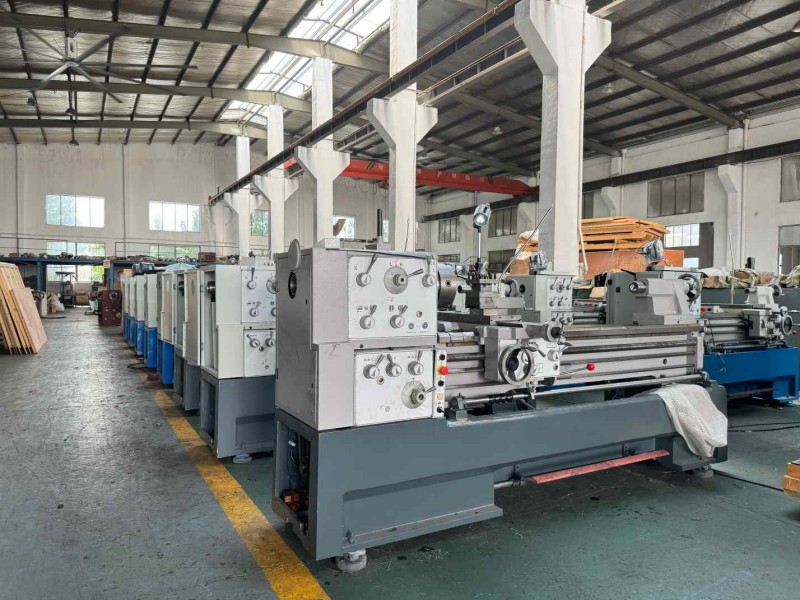

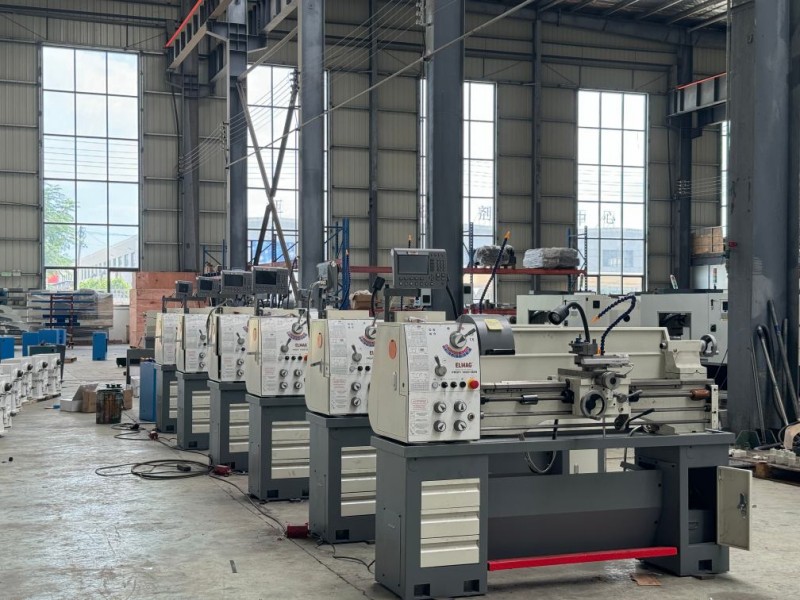

factory show

Professional Production Base, Strength in Precision Manufacturing.

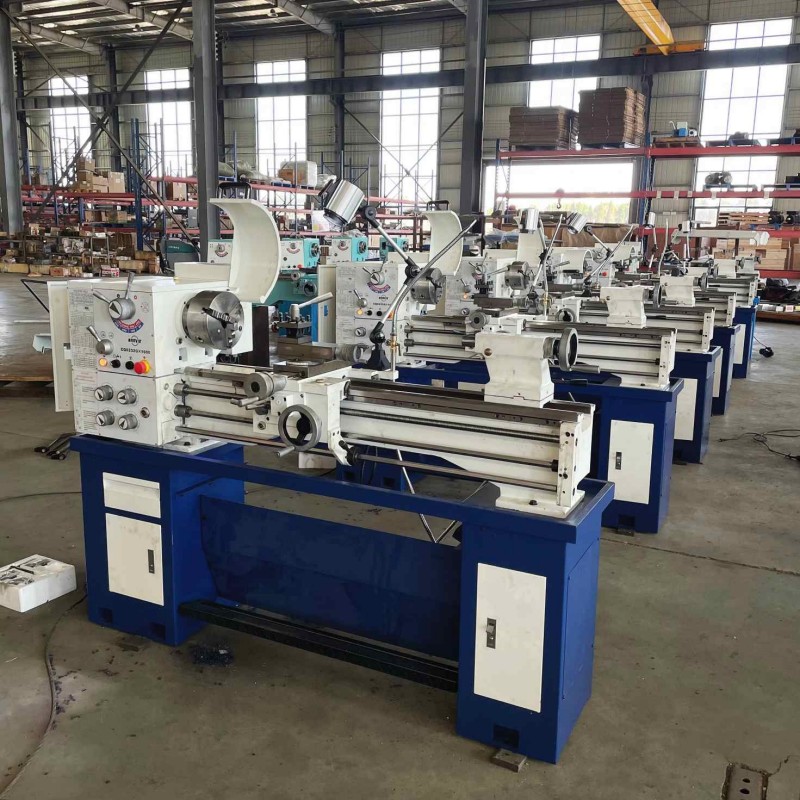

horizontal cnc lathe machine manual lathe

Heavy Duty Threading Lathe Machine

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

horizontal and vertical milling machine

packing

Q: How can I choose the most suitable machines?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .

Q: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.

Q: What material is the machine bed made of?

A: The whole bed is made of high-strength cast iron with strict aging treatment. It features high rigidity, anti-deformation and good shock resistance for long-term heavy load work.

Q: What processing operations can this lathe complete?

A: It can perform turning outer circle, inner hole, end face, taper, thread, grooving and knurling. Widely used for rough and finish machining of metal workpieces.

Q: What is the spindle speed range?

A: It has wide speed regulation range, stable rotation and strong load-bearing capacity, meeting the turning demands of different metal materials.
