Heavy Cast Iron Frame FB1605 FB2008 CNC Flanging Machine

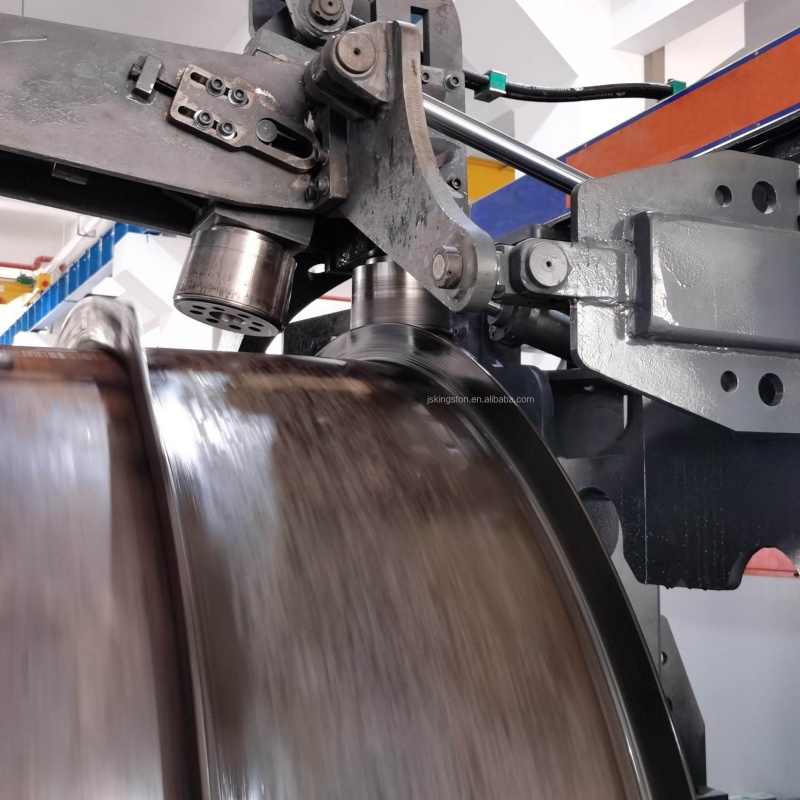

Automatic Edge Flanging Spinning Equipment

Heavy Cast Iron Frame FB1605 FB2008 CNC Flanging Machine

FB1605 and FB2008 are dedicated CNC flanging machines customized for fan duct and cylindrical barrel forming, supporting automatic edge bending, arc flanging and integrated punching on thin metal sheets.

Order(MOQ) :
1
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30

Inquire Now

Heavy Cast Iron Frame FB1605 FB2008 CNC Flanging Machine

Equipped with mature Siemens CNC control system and three-axis servo linkage drive,

this two-model series allows flexible adjustment of flanging angles from 0 to 90 degrees,

producing smooth, uniform flanges without wrinkles or deformation.

FB1605 fits duct diameters up to 1600mm while FB2008 extends the maximum processing diameter to 2000mm, covering small and large ventilation cylinder production demands.

The built-in hydraulic punching unit completes bolt hole drilling in one clamping, eliminating secondary handling and cutting production cycle time.

With heavy cast iron frame and full overload protection, the machines run stably for long-shift mass production of stainless steel, carbon steel and aluminum air ducts,

widely adopted by ventilation equipment, axial fan and industrial pipeline manufacturers.

specification

Tspe	Maximum diameter	Minimum diameter	Maximum length	Minimum length	Maximum punching diameter	Material thicknesa	Flanging foree	Clamping foree	Are radius	Are radius
	mm	mm	mm	mm	mm	mm	KN	KN	mm	mm
FB1605	1600	380	1500	100	20	2-5	30	40	≤50	30
FB2008	2000	580	1800	200	20	2-8	60	50	≤80	45

Product Advantages

Dual Model Size Coverage
FB1605 for medium ducts and FB2008 for oversized barrels, meeting diversified diameter production needs.
Multi-Angle CNC Forming
Programmable 0-90° straight and arc flanging, consistent finished edge flatness and dimensional accuracy.
Integrated Flanging & Punching
Combined forming and hole-drilling function reduces workpiece re-clamping and improves overall efficiency.
Wide Material Adaptability
Suitable for carbon steel, stainless steel and aluminum sheets, ideal for ventilation and fan component manufacturing.

JIANGSU KINGSTON MACHINE TOOLS GROUP CO.,LTD

Jiangsu Kingston Machine Tools Group began making our mark in the metal fabrication world 20 years ago when we established a prominent organization in 1998 marketing, selling, servicing and supporting metal working equipment and material handling products in the International market. Wanting to offer our customers a more flexible and higher quality line of machine tools to meet their most exacting needs we extensively researched and then approached the finest producers of metal fabrication equipment around the globe including the world's largest volume manufacturer of Gear Hobbing, CNC Metal Spinning Machine, Press brakes and Plate rolls etc to build machines to our specifications under the Kingston label. Our machines include Gear Hobbing, CNC Metal Spinning Machine, Hydraulic iron worker machine, press brake, shearing machine, rolling machine, section bender punching machines plasma and laser cutting machines, as well as Lathe machine etc.

Why choose us

Mature And Stable Technology
With years of experience in manufacturing industrial machine tools and CNC equipment, we adopt mature and stable processes from structural design, core component selection to complete machine assembly. Our machines feature reliable performance, low failure rate and good precision retention, able to meet long-term continuous production demands, making us the preferred partner for customers worldwide.
Support Customized Solutions
We provide exclusive customized solutions according to customers’ workpiece specifications, processing technology, production capacity and on-site conditions, including CNC system, travel, speed, tool changer, fixture and automation upgrading. One machine with one solution to help you improve efficiency, reduce cost and enhance competitiveness.
Complete After-sales Service
We have a professional after-sales and technical team to provide worldwide installation, commissioning, operation training and maintenance guidance. 24-hour online service.Quick response for any equipment problem, timely remote technical support and on-site service if necessary, ensuring uninterrupted production and worry-free use.

Our certification

Authoritative Certifications, Stable and Reliable Quality.

Certificate

factory show

Professional Production Base, Strength in Precision Manufacturing

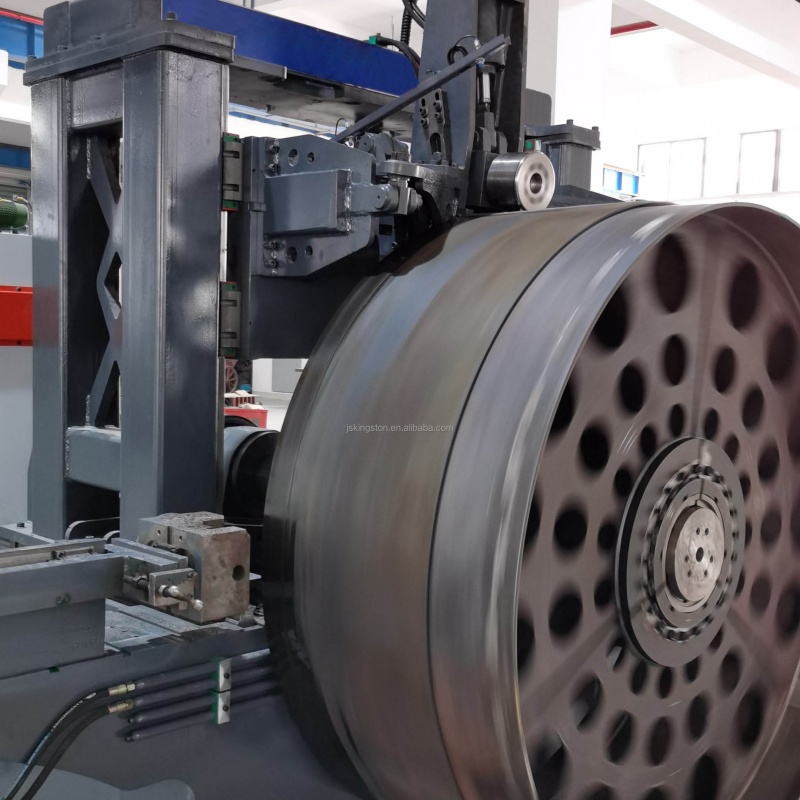

Factory direct metal spinning machine High precision metal spinning lathe Custom metal spinning machine Digital control metal spinning machine

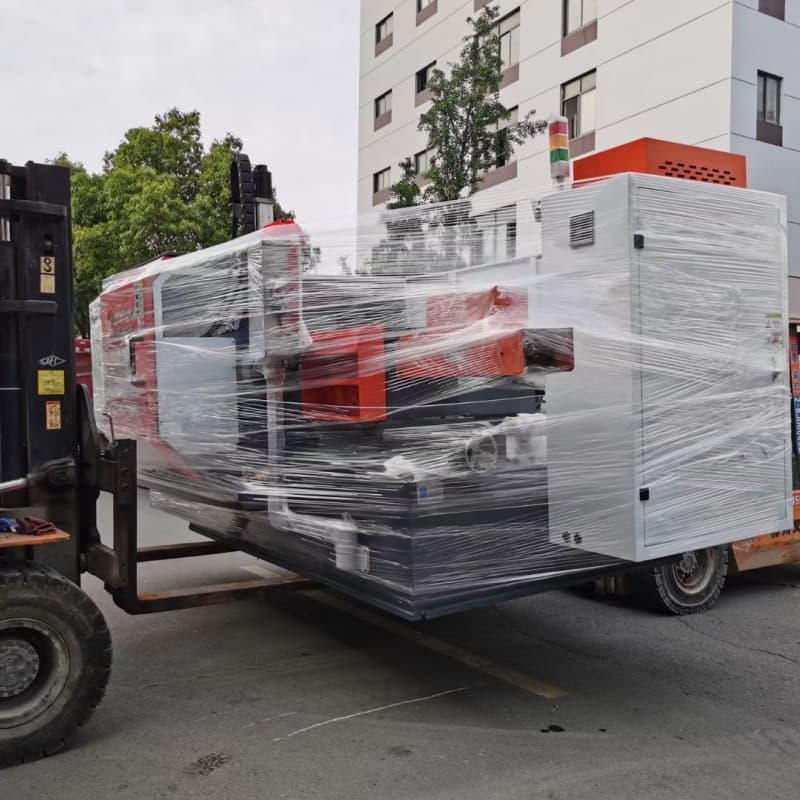

Packing and shipping

Safe & Professional Transportation, On-Time Delivery Guaranteed

Multifunctional machine manufacturer Heavy machinery manufacturer

Q: What’s the difference between FB1605 and FB2008?
A: FB1605 supports max workpiece diameter 1600mm, FB2008 for 2000mm larger barrels, same CNC flanging function.
Q: What flanging shapes can the machine make?
A: It can form 90° straight flanges, arbitrary angle bevel edges and arc curved flanges smoothly.
Q: What metal materials can it process?
A: Carbon steel, stainless steel, galvanized sheet and aluminum alloy for ventilation ducts & fan barrels.
Q: Does this machine support punching function?
A: Yes, integrated punching unit optional, finish flanging and hole drilling in one clamping.
Q: Which CNC system is equipped as standard?
A: Equipped with Siemens 828D digital control system, stable servo driving and easy programming.
