The X6325 turret milling machine is one of the most popular universal manual turret mills widely used in small-to-medium metalworking workshops, tool rooms, maintenance factories and vocational training centers. As a classic vertical turret milling model, X6325 delivers flexible milling performance for flat surfaces, grooves, slots, holes, gear cutting and complex contour machining. Compared with CNC milling centers, the X6325 turret mill features affordable investment, simple operation and strong adaptability for low-batch, multi-variety workpiece processing. Many machinery buyers search for X6325 milling machine, X6325 turret mill, universal turret milling machine X6325 when sourcing workshop metal processing equipment.

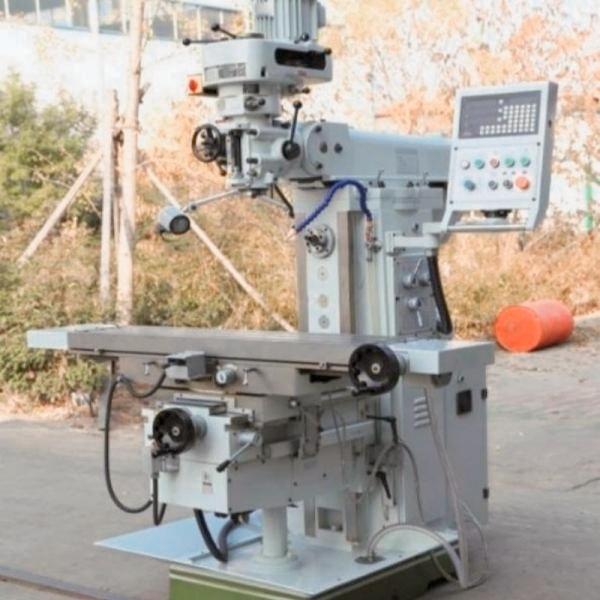

What Is X6325 Turret Milling Machine
The X6325 turret milling machine belongs to vertical universal turret milling equipment. Its core feature is the rotating turret head, which can swivel horizontally and vertically, allowing milling cutters to process workpieces at different angles without re-clamping parts.
The number “25” in X6325 stands for the maximum table working width 250 mm. This model is designed for ferrous metal, steel, aluminum, brass and other non-ferrous metal cutting tasks. It is a benchmark manual milling machine for general-purpose metal removal, widely replacing older milling models in job-shop environments.
Core Standard Specifications of X6325 Turret Milling Machine
Table size: 1270 × 254 mm
Max longitudinal travel: 680 mm
Max cross travel: 305 mm
Max vertical travel: 400 mm
Spindle taper: R8
Spindle speed range: 60-4200 rpm
Turret head swivel: ±45° horizontal, ±45° vertical
Feeding: manual feed, optional power feed for X-Y-Z axis
Key Features of X6325 Turret Milling Machine
1.Flexible swivel turret head
The turret milling head can rotate multi-directionally. Operators can complete angular milling, bevel cutting and inclined slot processing, greatly expanding workpiece machining possibilities. This is the biggest advantage of X6325 turret mill over ordinary vertical milling machines.
2.Rigid cast-iron machine body
Whole machine frame adopts high-strength cast iron structure, reducing vibration during heavy cutting. Stable rigidity ensures good surface finish when milling steel, avoiding tool chatter marks. Suitable for both light finishing and moderate heavy-duty cutting.
3.Easy-to-operate manual control system
X6325 turret milling machine uses handwheel manual operation. Workers can adjust feed rate and cutting depth freely. No complicated CNC programming required. Perfect for prototype making, repair work, small batch production and school training labs. Power feed option can be added to improve repeated processing efficiency.
4.Wide compatibility of cutting tools
Equipped with R8 spindle taper, supports end mills, face mills, slot drills, angle cutters and various standard milling tools. Users can quickly change cutters for different processing tasks.
Main Applications of X6325 Turret Milling Machine
The X6325 universal turret milling machine serves multiple industry sectors:
job-shop & metal fabrication: milling flat surface, step surface, open slot, closed slot, keyway
Mold & tool room: small mold rough machining, fixture production, prototype sample making
Machinery maintenance workshop: repair spare-parts, modify existing mechanical components
Vocational school & technical training: metal processing practical teaching for students
Small parts manufacturing: aluminum parts, steel brackets, hardware accessory small-batch production
Workpieces commonly processed on X6325 turret mill include mechanical brackets, fixture blocks, key-shaft parts, hardware mould blanks, auto repair spare parts.
X6325 Turret Milling Machine vs Other Milling Models
Many buyers confuse X6325 with other turret mill models.
X6325 VS X6330: X6325 table width 254 mm for medium-size workpieces; X6330 is larger version with wider table for bigger components.
X6325 turret mill VS VMC CNC milling machine: X6325 is manual turret mill, low cost, fit small-batch & prototype; VMC CNC machining center is automatic, for mass high-precision production with programming.
If your business focuses on flexible small-batch jobs, repair and prototype, X6325 turret milling machine is cost-effective choice. If you run mass-production orders, you shall consider upgrading to CNC vertical machining center.
Buying Tips for X6325 Turret Milling Machine
When sourcing X6325 turret milling machine from machinery supplier, focus on below points:
1.Machine body casting quality: check cast-iron rigidity, anti-vibration performance for heavy cutting.
2.Spindle assembly: stable spindle running, low noise, qualified R8 taper precision.
3.Axis sliding surface: good surface hardening treatment, smooth handwheel moving.
4.Optional configuration: power feed for axes, digital readout DRO unit, vise, milling cutter sets. DRO is very popular upgrade for X6325, greatly improving dimension reading accuracy.
5.After-sales support: spare-parts supply, overseas service, operation manual in English version.
FAQ
Q1: What material can X6325 turret milling machine process?
A: Mainly carbon steel, stainless steel, aluminum alloy, copper and brass. It is for metal cutting, not designed for high-hardness quenched steel without proper cutting parameters.
Q2: Can I install DRO digital readout on X6325 turret mill?
A: Yes. Most X6325 turret milling machines support retrofitting 2-axis or 3-axis DRO kit. DRO helps operators read travel dimension quickly and improve processing accuracy.
Q3: What is the difference between turret milling machine and vertical milling machine?
A: Turret mill (like X6325) has movable swivel turret head; ordinary vertical mill moves worktable only. Turret milling machine brings much more angle-processing flexibility.
