Core Strengths of Gantry Type Milling Machine

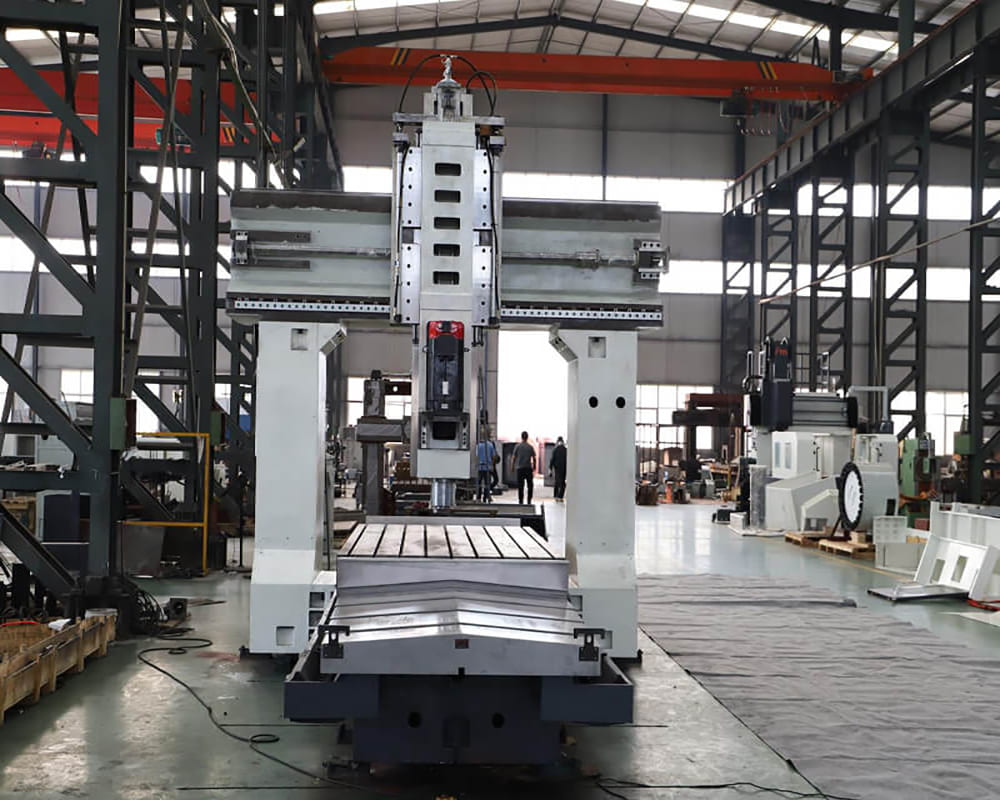

A gantry type milling machine is a large machining center built for big workpieces. Unlike a standard vertical mill where the table moves, a gantry mill has a fixed table while the cutting head moves on a bridge that spans across the table. This design gives the gantry mill several core strengths that make it the right choice for large parts.

Handles Very Large Workpieces in One Setup

The fixed table is the most important feature. The workpiece sits still while the cutting head moves, which is very different from standard mills where the workpiece moves with the table. For large, heavy parts weighing several tons, moving the workpiece is hard and inaccurate. On a gantry mill, the part does not move at all—only the cutting head moves. This allows machining of very large parts that would not fit on any other machine. Additionally, the cutting head can reach every point on the table, meaning you can machine an entire large part in one setup with no repositioning or realigning. This saves hours or days of handling time.

Cuts Heavy and Deep While Holding Precision

Gantry mills are very rigid. The columns are massive, the bridge is heavy, and the fixed table sits on a solid foundation. This rigidity allows heavy cuts in tough materials like steel, stainless steel, and cast iron without vibration or deflection. At the same time, gantry mills are built to hold tight tolerances over large distances. The fixed table means there is no moving mass under the workpiece, and the heavy cutting head moves smoothly on precision guideways. Modern gantry mills can hold tolerances of ±0.01mm over the full table length—remarkable for such large machines.

Machines Five Sides in One Setup and Easy to Load

Many gantry mills can have more than one cutting head. A vertical head machines the top surface, while a right-angle head machines the sides. Some machines have automatic head changers that switch between different heads without operator help. This allows five-sided machining in one setup—the workpiece sits on the table once, and the machine cuts the top, all four sides, and even angled holes. Loading heavy workpieces is also easy because the table is fixed at floor level. An overhead crane can set the part directly on the table without lifting onto moving tables or sliding into confined spaces. Loading takes minutes instead of hours.

Clean Chip Removal and Thermal Stability

Chip removal is excellent on gantry mills. The table is flat, chips fall off the edges, and many machines have chip conveyors built into the table sides. The open design means chips do not get trapped, and there are no way covers on the table because the table does not move—a major advantage over standard mills. Regarding thermal stability, the fixed table stays stable as it does not move, and the massive structure takes time to heat up. Many modern gantry mills also have thermal compensation, where sensors measure temperature at key points and the control adjusts for thermal growth automatically. This keeps the machine accurate even after hours of running.

Simple Design and Common Applications

Gantry mills have fewer moving parts than you might think. The fixed table has no moving parts at all—no table ways to wear, no ball screws to maintain on the table. The main wear points are the columns, bridge, and cutting head, which are accessible for inspection and repair. Many shops find gantry mills require less maintenance than smaller machines because the design is simpler. These machines are used across many industries: aerospace companies machine wing spars and fuselage panels, automotive tool rooms machine large injection molds, energy companies machine wind turbine hubs, and railway shops machine train body parts. Any industry with large metal parts uses gantry mills.

The core strengths of a gantry milling machine are clear. It handles very large workpieces that would not fit on other machines. It machines entire parts in one setup, saving hours of handling time. It cuts heavy and deep without vibration while holding precision over large areas. It machines five sides in one setup with multiple heads, is easy to load, and keeps chips away cleanly. For shops that need to machine large parts, a gantry mill is not just an option—it is the only solution. The machine pays for itself through reduced setup time, better accuracy, and the ability to take on work that other shops cannot do.
