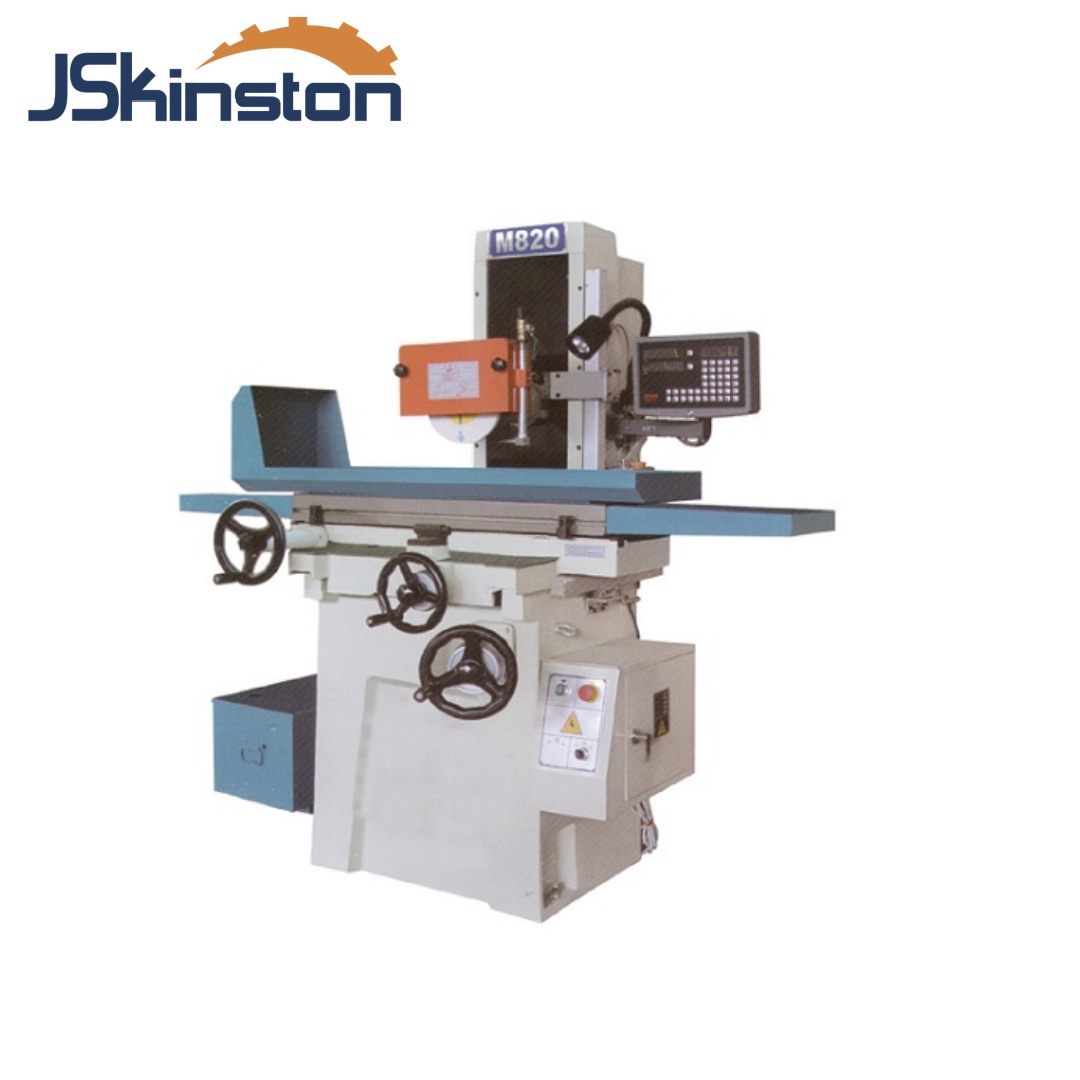

Kingston Brand Manual surface grinder M series
Characteristics of machine tool:
1. Spindle adopts ultra precision P4 ball bearing, after measuring pre strict pressure, assembled in the greenhouse, and equipped with a completely waterproof mazy design, in order to ensure the service life and the grinding of bearing surface roughness which marching with ball screw.
2. It has the advantages of compact structure, easy to operate.
3. A longitudinal rail worktable adopts rolling guide, rope wheel traction, light and flexible.
|
Technical Parameters |
Unit
|
M1022 |
M820 |
M618 |
||
|
Table maximum cutting area(L×W×H)
|
mm |
560×250×490 |
520×220×490 |
500×190×335 |
||
|
Working table movement
|
Max.grinding length
|
mm |
560 |
520 |
500 |
|
|
Max.grinding width
|
mm |
250 |
220 |
190 |
||
|
Distance from table surface to spindle center
|
mm |
490 |
490 |
335 |
||
|
Slide way |
|
V-type double rail with steel-ball |
V-type double rail with steel-ball
|
V-type rail with steel-ball |
||
|
Maximum work load
|
kg |
250 |
200 |
200 |
||
|
Table size
|
mm |
500×250 |
480×200 |
460×180 |
||
|
Number of T-slot
|
mm×n |
14×1 |
14×1 |
14×1 |
||
|
Table speed
|
m/min |
3-23 |
3-23 |
3-23 |
||
|
Front and rear wheel feed
|
mm |
0.02/graduation 4/revolution 0.02/格 4/圈 |
0.02/graduation 2.5/revolution 0.02/格 2.5/圈 |
0.02/graduation 2.5/revolution 0.02/格 2.5/圈 |
||
|
On the hand wheel feed
|
mm |
0.01/graduation 2/revolution 0.01/格 2/圈 |
0.01/graduation 1.25/revolution 0.01/格 1.25/圈 |
0.01/graduation 1.25/revolution 0.01/格 1.25/圈 |
||
|
Wheel size(dia×width×bore) |
mm |
200×20×31.75 |
200×20×31.75 |
180×13×31.75 |
||
|
Spindle speed
|
50Hz |
rpm |
2850 |
2850 |
2850 |
|
|
Variable frequency motor(matching)
|
0-6000 |
0-6000 |
0-6000 |
|||
|
Spindle motor |
kw |
1.5 |
1.5 |
1.1 |
||
|
Cooling pump |
kw |
0.4 |
0.4 |
0.4 |
||
|
Packing size(L×W×H)
|
mm |
1280×1250×1880 |
1260×1140×1760 |
1240×1080×1680 |
||
|
Gross/Net |
T |
1.1/1.0 |
0.85/0.75 |
0.75/0.65 |
||
